API diamond pdc drilling bit and diamond oil drilling bit with High Quality

FOB Reference Price:Get Latest Price
US $3,770-7,580 / Pieces | 1 Piece/Pieces (Min. Order)
Report Suspicious Activity
Supply Ability
Supply Ability:
20 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
In wooden case, or according to your requirement.
Chongqing, Shanghai, Guangdong
Lead Time :
Within 7-30 days after the order

API diamond pdc drilling bit  and diamond oil drilling bit with High Quality

Product Description


Advantages of PDC Bits:

1) PDC bits have much higher mechanical rotation speed;

2) PDC bits have much longer using lifetime;

3) PDC bits have repair ability.

    The Diamond PDC drill bit designed to run at high penetration rates even in applications that call for higher blade and cutter counts. Its unique cutting structure layout adds another dimension to bit stability and smooth running by combining the penetration rate potential of traditional "single set" cutter layouts with the life extending features of a "plural set" cutter layout.

Features of PDC Bits:

1) Force balanced, resist impact to the balde during high-speed drilling, to make bit work stable.

2) Plus wear knot section, reduce collision in the high-speed rotational vibration.

3) Patented matrix formulation, extend bit life.

4) Optimal hydraulic design, easy to move out the drill cuttings and cooling.

5) Equipped with back reaming teeth.

6) The cutter is high performance to increase the ability of anti-impact and anti-abrasive.

Flow Chart--PDC Bit



Packaging & Shipping


Packing: In wooden case ,   also be packaged according to customer requirements.

Shipping: We will issue the goods within 7 to 30 days after you place your order.


Company Information


   Chengdu rongwanda drilling equipment co., LTD is the largest domestic engaged in the diamond bit, bit one of the manufacture and sale of professional companies. Company adopts the world's cutting-edge design concepts and advanced manufacturing technology, design and manufacture of oil, natural gas drilling and comprehensive geological study of drilling, core and special-purpose of diamond bit and rock bit.

   We are also exploring a broader overseas market.Following the fast development, our market ability will gradually improve, and the products will become great better to supply each customer,The corporation is persevered in high standards, strict requirements, and regards product quality as its life.

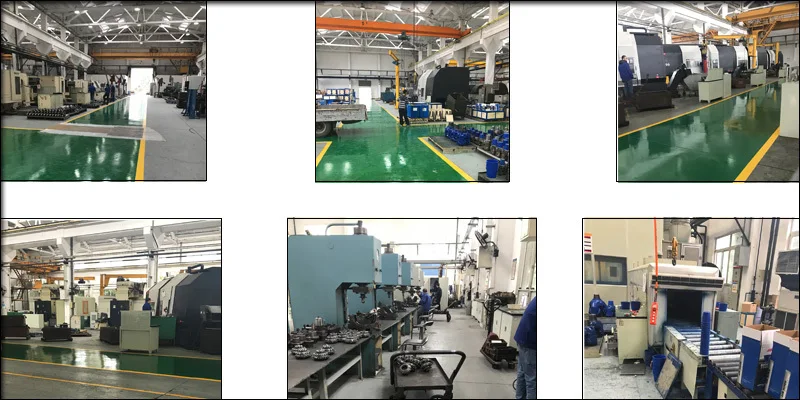

Factory Pictuers

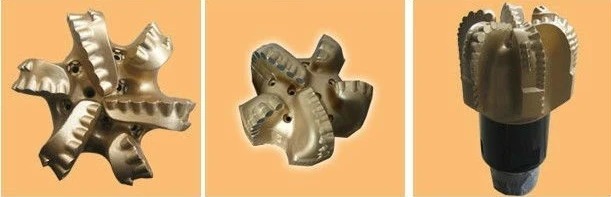

PDC Bits For Well Drilling

 Feature:Improved support and retention.

Advantage:Manage the magnitude cutter loading and bit torque.

Benefit:Improved bit duoability and directional responsiveness.

 Advantage:Higher nozzle counts and/or fixed ports to best serve cleaning cooling and cuttings evacuation requirements with available hydraulic flows.

Benefit:Optimized ROP and bit life. Longer drilling intervals without need for tripping.




1.Please select the applicable formation and parameters according to the instructions.

2.Carefully check the bits appearance and to check the bits threaded end face,whether the serial number on the box and certificate.

3.Selection of WOB and RPM should be within the limits of the recommended parameters, higher WOB and RPM cannot be used simultaneously.

4.Bottom hole must be clean and bit must not be used for long section reaming.

5.Drilling process must operate smoothly, find that there is Bie jump on abnormal phenomenon, should be timely analysis and take effective measures.

6.The bit should be kept indoor with dry and well ventilated conditions at 10-33℃ and kept from sunshine and rain. Stored under such conditions, quality of bit is guaranteed for 3 years.




Q1: Are you a manufacturer or trading company?

A: We are a specialized trading company,we have a fixed cooperative factory.Our factory is located in Chengdu city, Sichuan province, China. Welcome to visit.

Q2: What are your main products, and used for?

A: Our products include diamond bits, tricone bits and so on. Widely used in mineral exploration, geological drilling, geotechnical engineering, soil sampling etc.

Q3: How do you control the quality?

A: Quality first. In order to guarantee high quality products, all our products are in strict accordance with ISO9001 international quality system and have to undergo a rigorous testing system before delivery.

Q4: Do you accept sample order?

A: Yes sure, please contact us for details.

Q5: Min. Order?

A: Min. order quantity: 1 piece

Q6:Do you provide samples?is it free or extra?

A:Yes,we could offer the sample with good price but not free,if the sample tested is ok, we can give you a good price for the further order.
