Tricone Replaceable Single Roller Cone Cutters
SD Single Cone Bit Series:
Cutting Structure:
In response to the characteristics that inserts in different areas on the cone have different cutting actions, conical inserts are placed in permanent contact area and wedge inserts are placed in alternative contact area so that the drilling efficiency is greatly improved.
Gauge Structure:
With active cutting gauge protection inserts on bit body, the bit has good gauge protection and updrill capability.
Name | Single Cone Bit |
Bit sizes(in) | From 4 1/8 to 8 1/2 |
Bit sizes(mm) | From 104.8 to 215.9 |
IADC Code | 527 547 617 |
WOB(kn/mm) | 0.3-0.7 0.3-0.7 0.4-0.8 |
RPM(r/min) | 120-50 100-50 90-50 |
Advantage | Most favourable price and best quality |
Bearing Structure:
High precision journal bearing with two thrust faces. Balls lock the cone. Hardfaced head bearing surface.Cone bearing inlaid with friction-reducing alloy . Abrasion resistance and seizure resistance of the bearing are improved. Compared with three cone bit, the leg bearing is bigger, so it can receive higher WOB and high reliability.

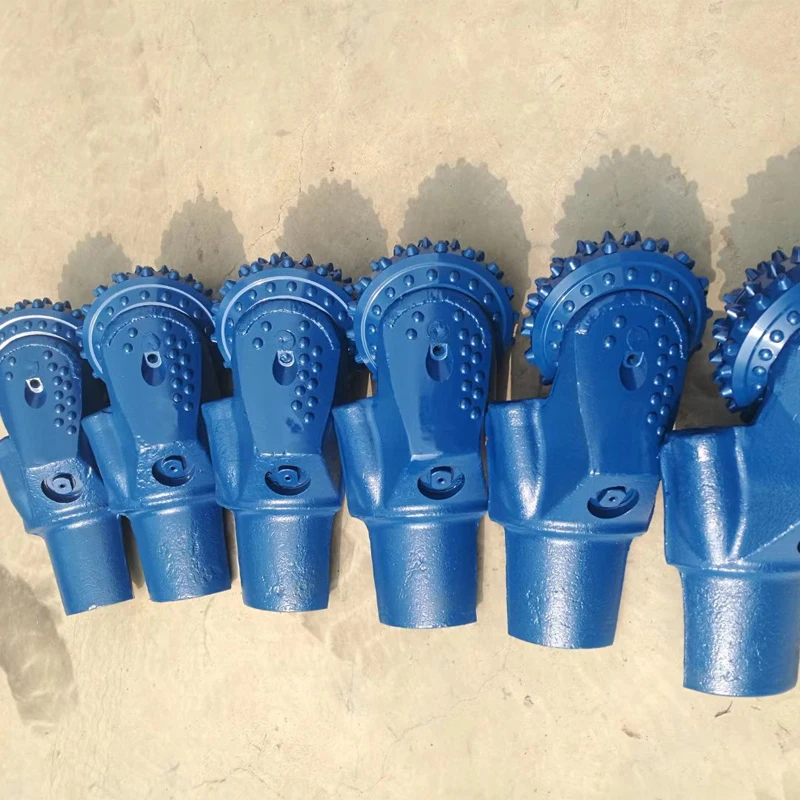

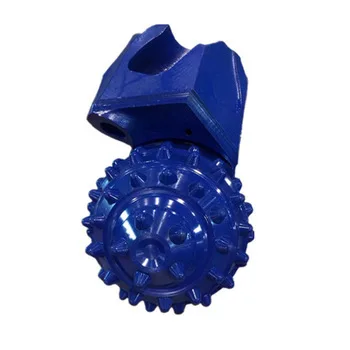

Detail Images:
Hydraulic Design:
Small angled watercourse design increased the shirttail thickness and can effectively prevent the watercourse erosion. Optimized hydraulics structure improves the cleaning capability and increases ROP.
Product Application:
It is suitable for sidetracking, deep well drilling and old well repairing.
Packing: We usually pack them in wooden cases or we can also pack them according to your requirements.
Shipping: Bulk orders are shipped in containers at home, then shipped to your country by sea , land or air. We can provide express delivery with a small quantity of orders.
