In wooden case, or according to your requirement. Welcome to contact us.
Chongqing, Shanghai, Guangdong
Within 7-30 days after the order

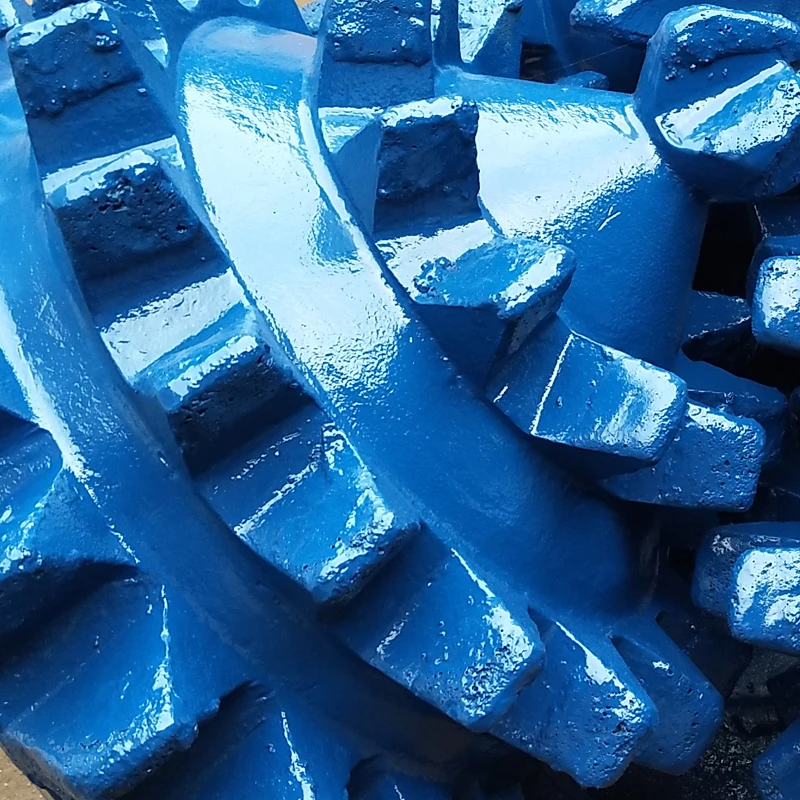

Hot selling milled tooth tricone rock bit with Drilling equipment
Drilling Tools can hard face the milled teeth so that they sharpen themselves while drilling.
Milled tooth tricone bits are designed for very soft to medium hardness formations.
Open Bearing mill tooth Tri-Cone roller cone bit can come with or without gauge protection.
These are less expensive than sealed bearing but they typically do not last as long.
Guage protection increases the life of the drill bit.
Steel Tooth Bit
116 117 126127 136 137 216 217 226 316 317
326 327 336 337 115 125 135 215 225 235 315 325
335 114 124 214 314 111 121 131 346 347
From 4 5/8 to 36”
larger sizes for hole opener bit ,reamer bit
From 117.5 to 914.4
From 6.0 to 1850.0
From 2 7/8 to 8 5/8
Most favourable price and best quality
SJ(metal sealed journal bearing)
SG (improved sealed roller bearing)
Button size (extra features)
1) Y-Conical insert
2) X-chisel insert
3)K- widened crest insert
4)G- Gauge/body protection
By sea or by air ,railway and multimodal transport
Within 7-30work days after confirm the order
Cutting Structure The wear-resistance of the teeth is enhanced with premium tungsten carbide hardfacing on the tooth surfaces for the steel tooth bit.The durability of premium tungsten carbide inserts is improved with new formulas and new techniques for insert bit Gauge Structure Multiple gague protection with gauge trimmers on the heel and gauge inserts on the gauge surface of the cone,tungsten carbide inserts and hardfacing on the shirttail increases gauge holding capacity and bearing life. Bearing Structure High precision journal bearing with two thrust faces,Balls lock the cone.Hardfaced head bearing surface.Cone bearing inlaid with friction-reducing alloy and then silver-plated.Abrasion resistance and seizure of the bearing are improved.and suitable for high rotary speed Seal and Lubrication The advanced metal seal package consists of two metal seals and two elastic energizers.Compressed energizers ensure good contact being kept on two sealing surfaces of metal rings by elastic force,and achieves the bearing seal.In the drilling,metal seals are relatively dynamic,and the energizers are static.This will improve the reliability and durability of bearing seal.The pressure compensator system and advanced grease can greatly increase the lubricating reliability.
Packaging & Shipping
Packaging:In wooden case and be packaged according to customer requirements.
Shipping: We will issue the goods within 7 to 30 days after you place your order.
Chengdu rongwanda drilling equipment co., LTD is the largest domestic engaged in the diamond bit, bit one of the manufacture and sale of professional companies. Company adopts the world's cutting-edge design concepts and advanced manufacturing technology, design and manufacture of oil, natural gas drilling and comprehensive geological study of drilling, core and special-purpose of diamond bit and rock bit.
We are also exploring a broader overseas market.Following the fast development, our market ability will gradually improve, and the products will become great better to supply each customer,The corporation is persevered in high standards, strict requirements, and regards product quality as its life.
1.Please select the applicable formation and parameters according to the instructions.
2.Carefully check the bits appearance and to check the bits threaded end face,whether the serial number on the box and certificate.
3.Selection of WOB and RPM should be within the limits of the recommended parameters, higher WOB and RPM cannot be used simultaneously.
4.Bottom hole must be clean and bit must not be used for long section reaming.
5.Drilling process must operate smoothly, find that there is Bie jump on abnormal phenomenon, should be timely analysis and take effective measures
6.The bit should be kept indoor with dry and well ventilated conditions at 10-33℃ and kept from sunshine and rain. Stored under such conditions, quality of bit is guaranteed for 3 years.
Q1: What are your main products, and used for?
A: Our products include diamond bits, tricone bits and so on. Widely used in mineral exploration, geological drilling, geotechnical engineering, soil sampling etc.
Q2: How do you control the quality?
A: Quality first. In order to guarantee high quality products, all our products are in strict accordance with ISO9001 international quality system and have to undergo a rigorous testing system before delivery.
Q3: Do you accept sample order?
A: Yes sure, please contact us for details.
Q4:Do you provide samples?is it free or extra?
A:Yes,we could offer the sample with good price but not free,if the sample tested is ok, we can give you a good price for the further order.
